How to Bend Your Roof Top Tent Poles to Clear the RHS Awning

As delivered, the poles included with some RTT's will not clear a passenger-side mounted awning - two need to be bent as detailed here

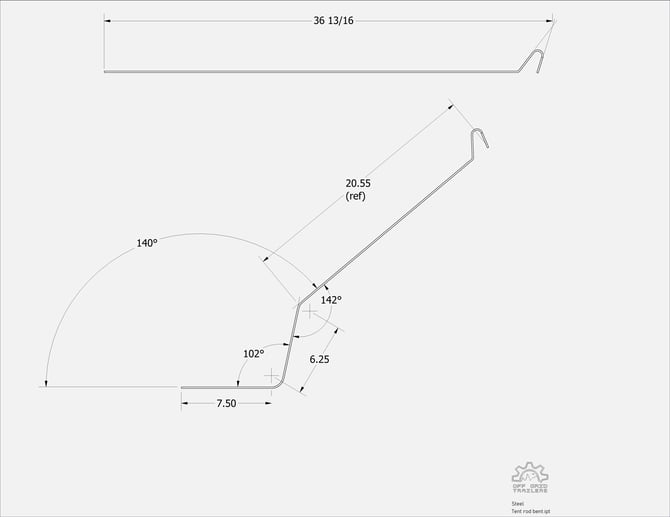

Tent rod bent v2

The above image shows the pole bent with given and reference dimensions in inches.  The radius of the bends can be any value - here they are shown at approximately 1". A bench-vise is useful for bending the poles, but even using the rear hitch of the trailer or a similar spot can be used to make these bends while on the trail.

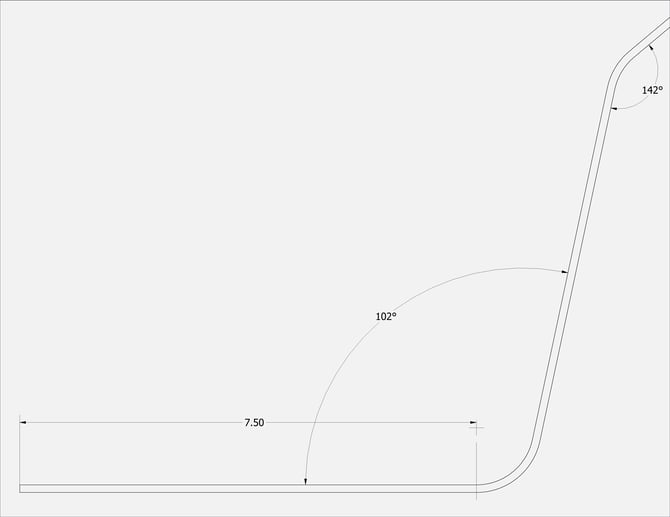

Here's a 1:1 view of the bends:

Tent rod bent full size

To print a template: download the above image. Set your printer settings to 8 1/2" x 11" with no margins. Print the page, and check your dimension of 7.50" - you can then use this to adjust the print size percentage to home in on actual size so you have a useful template. For instance, if you measure your print and you find the value as 6.825", try 110%. During bending you can then lay the rod on this page to check lengths and dimensions.

If you have any questions or difficulties to give us a call or email warranty@offgridtrailers.com.
